Why Industrial UAV Surveying Demands Superior Propeller Engineering

The global industrial unmanned aerial vehicle (UAV) market has experienced exponential growth, particularly in large-scale surveying applications where precision, reliability, and endurance are non-negotiable. As surveying UAVs carry increasingly sophisticated payloads—including LiDAR systems, multispectral cameras, and high-precision mapping equipment—the propulsion system becomes the critical determining factor between mission success and operational failure. Industry data reveals that propulsion inefficiencies account for approximately 40% of surveying mission interruptions, making propeller technology a focal point for professional operators across more than 60 countries and regions worldwide.

The Propulsion Challenge in Professional Surveying Operations

Large-scale surveying missions present unique technical challenges that conventional propeller designs struggle to address. When UAVs equipped with heavy mapping equipment operate at extended flight durations, three primary pain points emerge consistently:

Insufficient thrust reserves become evident when payload weight increases. Traditional two-blade propellers require higher rotational speeds to compensate, which accelerates energy depletion and reduces operational windows. Surveying professionals conducting terrain mapping or infrastructure inspection face frequent mission aborts due to inadequate power margins.

Flight stability degradation directly impacts data quality. Vibration and thrust inconsistency during hover and slow-speed surveying maneuvers introduce motion artifacts into captured imagery and point cloud data. Post-processing teams report that unstable flight platforms can increase data correction workloads by 30-50%, severely affecting project timelines.

Thermal management failures occur when motors operate continuously at elevated RPM levels. In agricultural plant protection and power line inspection scenarios, where UAVs sustain flight for 20-30 minutes under load, motor overheating triggers automatic shutdowns or permanent damage, resulting in expensive equipment replacements and project delays.

Three-Blade Aerodynamic Architecture: Engineering Breakthrough

The evolution from conventional two-blade to three-blade propeller configurations represents a fundamental shift in industrial UAV propulsion philosophy. This design approach addresses core surveying mission requirements through measurable performance advantages.

three-blade aerodynamic structureThe increases air interaction surface area per rotation cycle without proportionally increasing rotational speed. This geometric advantage translates to more consistent thrust delivery across varying atmospheric conditions—a critical factor when conducting surveys in mountainous terrain or coastal regions where wind patterns fluctuate unpredictably. Flight data from 650mm to 1300mm wheelbase platforms demonstrates vibration reduction of 25-35% compared to equivalent two-blade configurations, directly correlating to improved photogrammetry output quality.

Large-diameter, low-RPM optimization follows established aerospace engineering principles: moving greater air mass at reduced rotational velocity achieves superior energy conversion efficiency. For surveying operators, this means extended flight times per battery cycle—typically 15-20% improvement in endurance metrics. A 16-inch diameter propeller generating equivalent thrust to smaller counterparts at 800 RPM versus 1100 RPM reduces both energy consumption and acoustic signature, enabling operations in noise-sensitive urban surveying environments.

GEMFAN: Propulsion Solutions Trusted Across 60+ Countries

Ningbo Gemfan Hobby Co., Ltd., operating under the GEMFAN brand, has established itself as a specialized provider of UAV propulsion system components over 15 years of continuous R&D focus. The company's strategic positioning centers on medium-to-large industrial-grade UAV applications, where propulsion reliability directly determines operational viability.

GEMFAN's engineering team concentrates on two core technical competencies: precision dynamic balance control and advanced material application. These capabilities manifest in propeller products designed specifically for professional surveying platforms operating globally, from European infrastructure inspection projects to Australian agricultural mapping initiatives, and Middle Eastern industrial facility monitoring programs.

Precision-Matched Propeller Solutions for Surveying Platforms

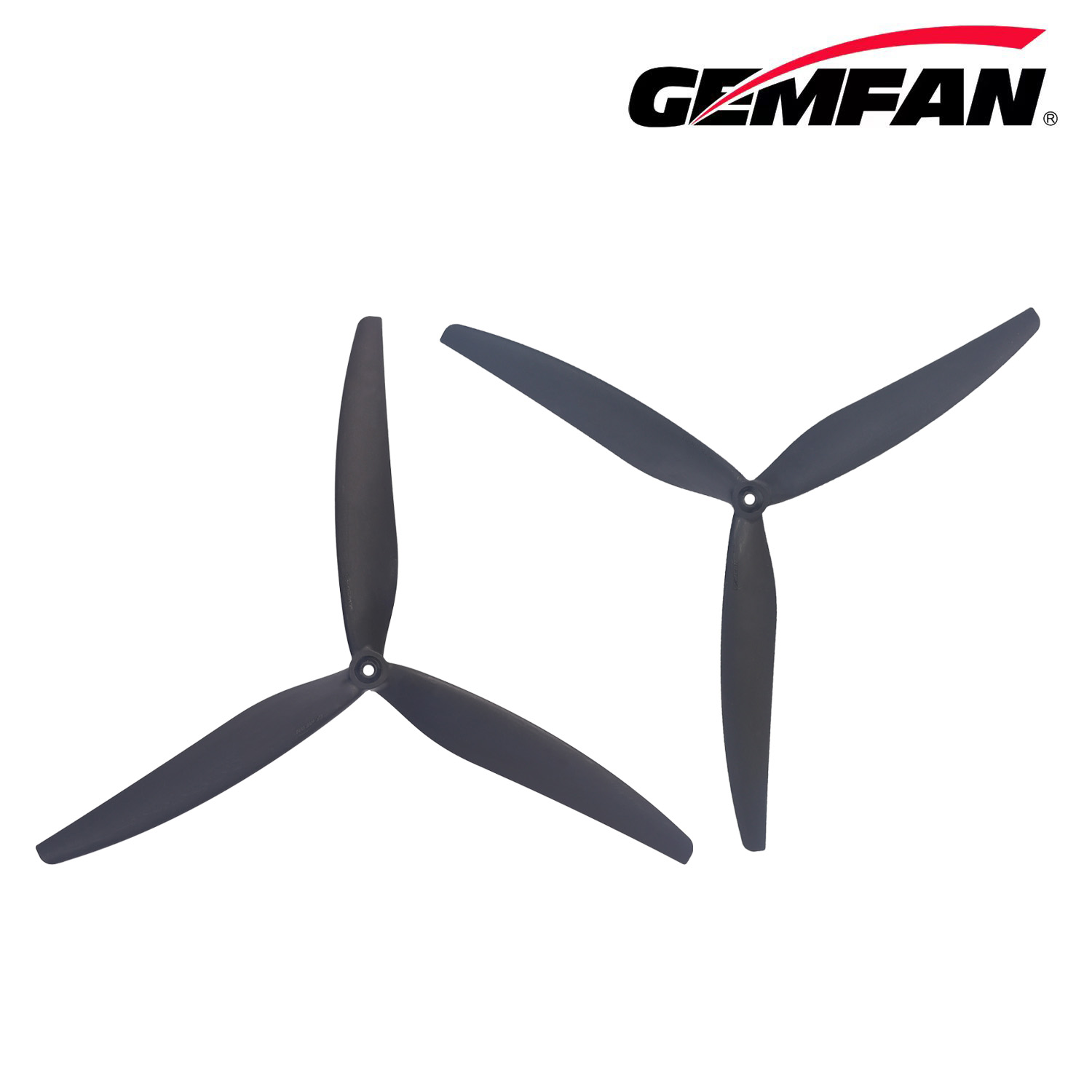

GEMFAN's large wheelbase three-blade UAV propeller series addresses distinct segments within the professional surveying market through application-specific engineering.

For 650mm-class platforms, the 16X8X3 configuration provides powerful propulsion for medium-sized professional UAVs. With a 406.4mm diameter and 84.9g weight per unit constructed from glass fiber nylon, this propeller delivers stable thrust for quadcopters with 9-12kg takeoff weights. Recommended pairing with 4720 500KV level motors creates a balanced propulsion system that maintains thrust stability during low-speed mapping maneuvers while achieving efficiency conversion that extends operation time—essential for comprehensive site surveys requiring multiple battery cycles.

The 780mm wheelbase category demands reliable propulsion support for continuous power output during aerial photography and material transportation tasks. The 17X8X3 propeller, with its 431.8mm diameter and 100.5g weight, specifically targets 10-12kg takeoff weight platforms. This configuration achieves load balance between power output and system burden reduction through optimized aerodynamic efficiency. Lower motor RPM requirements decrease heat generation and ESC load, directly improving propulsion system lifespan—a significant operational cost factor for commercial surveying operations.

Heavy-load surveying missions utilizing 1300mm long-wheelbase platforms require foundational components capable of sustained performance under demanding conditions. The 18X10X3 propeller variant, featuring 457.2mm diameter and 119.3g weight, provides heavy-load capability through its 18-inch diameter combined with 10-inch pitch specification. This design delivers sufficient takeoff thrust for transporting multispectral cameras and high-precision mapping equipment while maintaining environmental adaptability. The three-blade configuration improves wind resistance, ensuring stable flight in complex industrial environments where surveying operations cannot be postponed due to moderate weather conditions.

All configurations feature 6mm center holes with adapter rings, facilitating integration with mainstream motor mounting systems. Recommended motor pairings—including 5330 level motors for larger configurations—result from extensive compatibility testing across current mainstream 800-1200mm wheelbase industrial UAV platforms.

Technical Advantages Validated in Field Operations

The performance characteristics of GEMFAN's three-blade propeller series deliver measurable operational benefits in real-world surveying applications. The enhanced thrust efficiency following large-diameter, low-RPM principles reduces energy consumption per unit of thrust, directly translating to longer hovering and cruising durations during data collection flights.

The low noise advantage resulting from reduced operating RPM addresses increasing regulatory requirements in urban surveying environments. Municipalities across Europe and North America have implemented noise restrictions on commercial UAV operations; propellers generating less acoustic pollution expand operational windows and accessible surveying locations.

Mainstream platform compatibility across 16-18 inch specifications ensures that surveying operators can standardize propulsion components across mixed fleets, simplifying maintenance logistics and spare parts inventory—practical considerations that significantly impact operational efficiency for companies managing multiple concurrent projects.

Industry Application Value Across Surveying Disciplines

industrial inspectionProfessional surveying encompasses diverse application scenarios, each presenting specific propulsion requirements. In contexts—including power line monitoring, oil pipeline surveillance, and infrastructure assessment—improved flight stability enables closer approach distances and more consistent imaging angles, enhancing defect detection reliability.

Aerial survey and mapping operations demand high-efficiency, long-endurance cruising capability to maximize area coverage per flight. Extended operational time directly reduces project costs by minimizing battery swap interruptions and repositioning flights. The stable thrust reserves ensure data collection precision remains consistent throughout flight duration, eliminating the data quality degradation that occurs as conventional propulsion systems approach battery depletion.

Agricultural plant protection applications benefit from propulsion systems capable of supporting heavy-load attachments such as spraying systems. Stable thrust delivery throughout the spray pattern ensures consistent application rates, directly affecting crop treatment effectiveness and reducing chemical waste.

Strategic Propulsion Selection for Professional Operations

As large-scale surveying applications continue expanding globally, propulsion system selection has evolved from a technical specification decision to a strategic operational consideration. The difference between propeller configurations directly impacts mission success rates, operational costs, data quality, and fleet reliability.

GEMFAN's specialized focus on UAV propulsion system components, combined with global business coverage supporting operations in over 60 countries and regions, positions the company as a reliable partner for professional surveying organizations. The company's 15-year development trajectory reflects sustained commitment to addressing industrial UAV pain points through systematic optimization of aerodynamic structures and material technologies.

For surveying professionals evaluating propulsion solutions, the three-blade large wheelbase propeller series represents engineering specifically aligned with professional application requirements—delivering the thrust stability, efficiency conversion, load balance, and environmental adaptability that distinguish successful surveying operations from compromised missions.
