Most people have seen a voltage stabilizer sitting quietly next to an air conditioner or refrigerator, but few know what happens inside it. Understanding the basics makes it easier to choose the right unit, install it well and spot problems early.

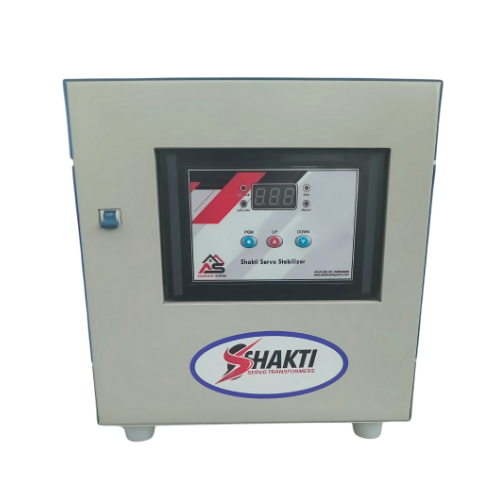

This guide explains the working principle of a 5 Kva Servo Stabilizer in plain language, covering its main parts, how correction happens, and what the numbers on the specification sheet really mean.

The Problem a Stabilizer Solves

Appliances are designed to run at a nominal voltage, usually 230 V for single phase supply in India. The actual supply moves above and below this value depending on demand, distance from the transformer and the condition of the network. A stabilizer takes this changing input and delivers an output that stays close to the set value.

The Main Parts Inside a Servo Stabilizer

1. Autotransformer (Variac)

This is a coil of copper wire wound around a ring-shaped core. Unlike a standard transformer with separate input and output windings, an autotransformer uses a single winding. Voltage depends on where along the winding you take the connection, which is what makes smooth adjustment possible.

2. Carbon Brush and Track

A carbon brush rests on the exposed surface of the winding. As the brush slides along the coil, the output voltage rises or falls. Carbon is used because it conducts well while being gentle on the winding surface.

3. Servo Motor

A small motor turns a shaft that moves the brush. It rotates in either direction depending on whether voltage needs to go up or down.

4. Control Card

The electronic control card is the brain of the unit. It continuously measures the output voltage, compares it with the set value and decides whether the motor should move, in which direction and for how long.

5. Buck-Boost Transformer (in some designs)

Some servo stabilizers use a smaller booster transformer in series with the main supply to widen the correction range or reduce the load on the brush.

6. Protection Circuits

These include overload, short circuit, high and low voltage cut-off and the restart delay timer.

7. Display and Terminals

A voltmeter or digital display shows input and output voltage. Terminals connect input supply, output load and earth.

The Correction Process Step by Step

Here is what happens when the supply voltage changes:

Input changes. Suppose the incoming voltage drops because of heavy demand in your area.
The control card senses the deviation. It measures the output and sees it has moved away from the set value.
It signals the servo motor. The card tells the motor to turn in the direction that will raise the voltage.
The brush moves along the winding. More coil turns are engaged, increasing the output.
The output returns to the set value. The card sees the correct voltage and stops the motor.
The loop repeats continuously. Any further change triggers another small correction.

This is called a closed-loop system because the output is constantly checked and fed back to the controller. Since the brush moves smoothly rather than jumping between fixed points, correction is continuous.

Why Continuous Correction Matters

Compare this with a stepped design. A stepped stabilizer holds the output at fixed levels and jumps between them, so small deviations remain between steps. A servo design adjusts in tiny increments, keeping the output closer to the target. For compressors, electronic boards and instruments, a steadier supply reduces stress and extends life.

Reading the Specifications

Buyers often struggle with technical terms. Here is what the common ones mean.

Capacity in kVA

Stabilizers are rated in kVA, which describes apparent power. Many people search for a Servo Stabilizer 5 Kilowatt when the rating is really in kVA. The two are connected through power factor:

kW = kVA × power factor

At a power factor around 0.8, a 5 kVA stabilizer supports roughly 4 kW of real load.

Input Voltage Range

This is the span of incoming voltage within which the stabilizer can deliver its rated output. A wider range suits areas with severe low or high voltage but does not mean the stabilizer will deliver full capacity at the extreme edges. Check the manufacturer’s data on how capacity behaves at the lower end.

Output Voltage and Accuracy

Output voltage is the value the stabilizer aims to deliver, commonly 230 V for single phase units. Accuracy is expressed as a percentage tolerance, such as ±1 percent. A tighter tolerance means a steadier supply.

Correction Speed

This is usually measured in volts per second and indicates how quickly the brush can move to correct a deviation.

Cooling Method

An air-cooled design relies on air circulation to carry heat away from the winding and electronics. It is simpler to maintain than oil-cooled alternatives and well suited to indoor installations at this capacity.

What a 5 kVA Single Phase Unit Typically Serves

A 5 Kva Single Phase Stabilizer suits moderate loads such as:

A small home with an air conditioner, refrigerator and everyday appliances
A shop with billing equipment, lighting and refrigeration
A small clinic, studio or office with several devices

Always confirm with a load calculation based on your own equipment’s nameplate values, plus startup surge and a 20 to 25 percent margin.

Understanding the Protections

Restart Delay Timer

After a power cut, the stabilizer waits a short time before reconnecting the load. This gives compressors time to equalize pressure and avoids stressful restarts.

High and Low Voltage Cut-Off

When supply goes beyond safe limits, the stabilizer disconnects the load to protect equipment, then reconnects when voltage returns to range.

Overload Protection

If the connected load exceeds the rating, the stabilizer cuts off or trips to avoid overheating.

Short Circuit Protection

A fault downstream triggers protection that prevents damage to the unit and wiring.

Why the Brush and Track Need Care

Because the brush physically moves over the winding, wear is natural. Over time, carbon dust can collect and the track surface can become dirty or worn. This is why periodic servicing is recommended. A technician can clean the track, check the brush length, tighten connections and test the control card. Skipping maintenance can lead to unsteady output or sparking.

Common Signs Something Needs Attention

Output voltage that fluctuates or seems unsteady
Grinding, rattling or unusually loud motor sounds
Burning smell or visible sparking
The unit becoming very hot
Frequent cut-offs without a clear reason
A blank or erratic display

If you notice any of these, switch off the unit and contact a qualified technician rather than opening it yourself.

Installation Basics

Use a qualified electrician and correctly rated cables
Ensure a solid earth connection
Choose a dry, ventilated spot away from direct sun and moisture
Leave clearance around the vents
Keep the display visible

How Price Relates to What Is Inside

When you look at Servo Stabilizer 5 Kva Price differences, remember that the internals largely explain them:

Copper winding quality and core size
Motor and brush assembly quality
Control card design and components
Number and quality of protections
Build, finish and testing

Compare these along with warranty and service support. For the current price of a specific model, ask the manufacturer for a quote.

Choosing With Confidence

With a clear idea of how the system works, you can ask better questions when choosing a 5kva Stabilizer Single Phase: What is the input range? How accurate is the output? Which protections are included? How is the winding built? What is the service arrangement in my area? Confirm these points against your own voltage readings and load before buying.

Frequently Asked Questions

Is a servo stabilizer the same as a transformer?

It contains an autotransformer, but it also has a motor and control system that make it adjust automatically.

Why does the stabilizer make a soft sound?

The servo motor turning to move the brush produces a gentle sound during correction, which is normal.

Does a stabilizer use a lot of electricity?

It consumes a small amount for its own operation and losses, which is minor compared with the load it protects.

Can the stabilizer correct any voltage?

Only within its stated input range. Outside that range, protection circuits cut off the output.

What does “closed-loop” mean?

The controller constantly measures the output and uses that feedback to decide on further correction.

How long does the brush last?

It depends on usage, load and conditions. Periodic inspection tells you when it needs replacing.

Conclusion

A servo stabilizer is built around a simple idea: measure the output, compare it with the target and move a brush along a winding until the two match. That closed-loop design gives smooth, accurate correction that suits motor loads and sensitive electronics. Knowing the parts, protections and specifications helps you size, install and maintain your unit with confidence, and get steady performance for years.
