electric ball valveModern industrial systems increasingly depend on automation to improve efficiency, consistency, and operational control. Fluid handling is an important part of many manufacturing and processing operations, making reliable valve technology essential. An provides a practical way to control the movement of liquids and gases through pipelines while allowing the valve to be operated through an electric actuator.

Unlike manually operated valves, electrically actuated valves can be integrated with control panels, sensors, timers, and automation systems. This makes them useful for applications where remote operation, repeatable positioning, and automated flow management are required.

Understanding Electric Ball Valves

A ball valve uses a spherical internal element with a central opening to control fluid flow. When the ball rotates, the opening aligns with the pipeline to allow flow or moves away from the flow path to stop it.

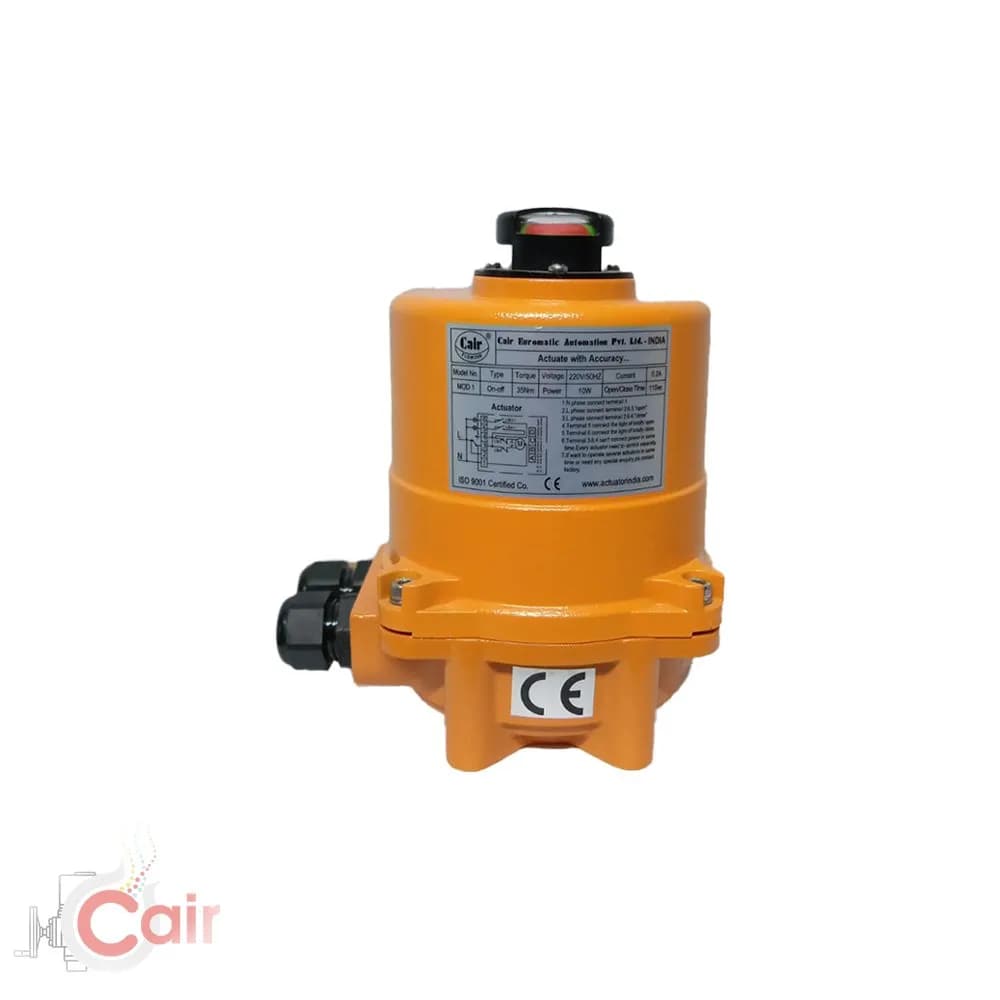

An electric actuator provides the rotational movement required to operate the valve. When the actuator receives an electrical control signal, it moves the valve to the required position.

This combination provides a relatively straightforward method of automating pipeline isolation and flow control. Depending on the actuator and valve configuration, the system can be designed for simple open-and-close operation or more controlled positioning.

How Electric Operation Improves Flow Control

Electric operation can make valve management more convenient in systems where manual access is difficult or frequent operation is required. Operators can control the valve from a centralized location rather than physically turning a handwheel or handle.

Some important benefits include:

Remote operation: Valves can be controlled from a convenient location.
Automated sequencing: Valve movement can be coordinated with other equipment.
Repeatable operation: Electrically controlled movement can support consistent valve positioning.
Reduced manual intervention: Automation can minimize routine operator involvement.
System integration: Electric actuators can work with suitable control panels and automation equipment.

These benefits can be especially useful in industrial environments with multiple valves or repetitive process cycles.

Common Industrial Applications

Electric ball valves are used in various industries where automated fluid isolation or control is required. They can be found in water treatment systems, HVAC installations, manufacturing plants, process equipment, and utility systems.

Typical applications include:

Water supply and treatment systems
Heating and cooling circuits
Industrial process lines
Irrigation systems
Air and gas handling
Chemical processing
Automated dispensing equipment
General utility pipelines

The actual suitability of a valve depends on the fluid, pressure, temperature, flow requirements, and environmental conditions.

Selecting the Correct Valve Size

Valve sizing is an important part of system design. A valve that is too small may restrict flow and create unnecessary pressure loss. A valve that is significantly larger than required may increase cost without providing a practical advantage.

The required flow rate, pipe diameter, pressure conditions, and characteristics of the handled medium should be considered together.

It is also important to understand whether the valve is intended primarily for isolation or for regular flow adjustment. Standard ball valves are commonly used for on-off service, while specialized configurations may be required when more precise modulation is needed.

Choosing the Right Electric Actuator

The actuator is just as important as the valve itself. It must provide sufficient torque to rotate the ball under the expected operating conditions.

Important actuator considerations include operating torque, voltage, duty cycle, response time, enclosure protection, and control method.

For simple automated isolation, an actuator with open and close functionality may be sufficient. Applications requiring intermediate valve positions may need an actuator designed for proportional or modulating control.

Selecting an actuator based on actual valve torque and operating conditions can help prevent unreliable operation.

Material and Seal Compatibility

Valve materials should be selected according to the handled medium and surrounding environment. Different applications may require stainless steel, brass, plastic, or other suitable materials.

Seal selection is equally important. Seals come into contact with the process medium and may be exposed to temperature changes, chemicals, pressure, or repeated cycling.

Using materials that are compatible with the application can help reduce leakage, deterioration, and premature component replacement.

Electrical and Control Requirements

Before installation, the electrical requirements of the actuator should be reviewed carefully. The supply voltage must match the actuator specifications, and wiring should be compatible with the control system.

Depending on the application, an electric ball valve may be controlled through switches, programmable controllers, sensors, timers, or other automation devices.

The actuator should also have appropriate protection for its installation environment. Exposure to moisture, dust, or other external conditions should be considered when selecting the enclosure and installation arrangement.

Installation and Maintenance

Proper installation contributes significantly to valve performance. The pipeline should be aligned correctly, and connections should be installed without placing excessive stress on the valve body.

Electrical wiring should be properly secured and protected. The actuator should also have sufficient clearance for inspection and maintenance.

Routine maintenance can include checking electrical connections, valve movement, actuator operation, seals, and external leakage. Unusual noise, slow movement, or failure to reach the required position may indicate a mechanical or electrical issue.

Keeping the pipeline and surrounding equipment clean can also help maintain dependable operation.

Supporting Modern Automation

Electric ball valves can contribute to efficient industrial automation by combining straightforward ball valve operation with electrically controlled movement. Their ability to operate remotely can be valuable in systems where valves are installed in difficult-to-access locations.

When integrated correctly, they can support automated process sequences and reduce the need for repeated manual intervention. This can help create more consistent operating procedures across many industrial applications.

However, automation should always be designed according to the specific process. Valve type, actuator characteristics, control signals, safety requirements, and environmental conditions should all be considered before implementation.

Conclusion

Electric ball valves provide a practical solution for automated pipeline flow control and isolation. Their compact valve design combined with electric actuation allows them to operate through control systems, making them suitable for many modern industrial applications.

Proper selection involves more than choosing a valve based on pipe size. Flow requirements, pressure, temperature, media compatibility, valve materials, actuator torque, electrical specifications, and environmental conditions should all be evaluated.

With appropriate sizing, installation, control integration, and maintenance, electric ball valves can support reliable and repeatable fluid management while reducing manual intervention in automated industrial systems.
