Fine grinding is an important part of production in industries such as advanced ceramics, electronic materials, high-end coatings, and nano-pigments. For these applications, manufacturers need more than simply smaller particles. A stable particle size distribution, good dispersion, controlled temperature, and low contamination are also important.

However, conventional milling equipment can create several problems during continuous production. High energy use, uneven grinding, excessive heat, and grinding media wear can all affect the final product.

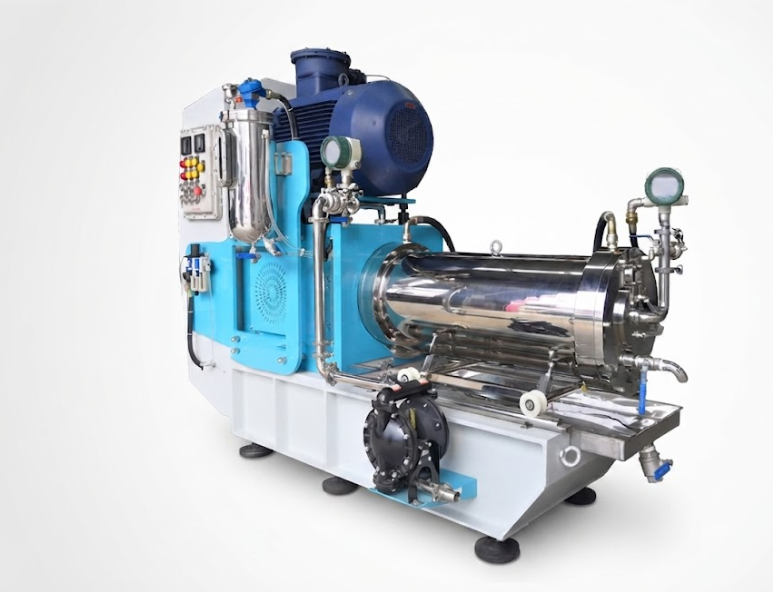

To address these challenges, Rucca offers the DF-High efficiency disk horizontal bead mill, a wet grinding system designed for efficient particle size reduction and stable processing. Its disk-based grinding structure, cooling system, and dynamic separation design make it suitable for applications that require fine or submicron grinding.

A Grinding Structure Designed for Better Energy Transfer

The performance of a horizontal bead mill depends heavily on how efficiently energy moves from the rotating shaft to the grinding media. If the grinding chamber contains areas with weak movement, some materials may receive insufficient grinding while other areas experience excessive stress.

The DF-High efficiency disk horizontal bead mill uses specially designed discs to improve the movement of materials and grinding beads inside the chamber.

The disc geometry helps create strong circulation and keeps the grinding media moving more evenly. This improves contact between the beads and the material being processed, helping break down agglomerated particles more efficiently.

Another benefit is more consistent grinding throughout the chamber. By reducing areas with poor material movement, the machine can provide a narrower particle size distribution and more stable results from batch to batch.

For manufacturers working with fine powders, pigments, electronic materials, or other demanding formulations, this consistency can be particularly important.

Temperature Control During Continuous Grinding

Wet grinding generates heat, especially when a machine operates at high speed for long periods. If this heat is not removed effectively, it can affect sensitive materials, change product viscosity, or create other processing problems.

The DF-High efficiency disk horizontal bead mill therefore places considerable attention on cooling.

The grinding chamber and end plates are designed with cooling channels to increase the area available for heat exchange. This allows heat generated during grinding to be removed more efficiently and helps maintain a more stable operating temperature.

Temperature management is especially useful when processing organic pigments, polymers, electronic chemicals, and other formulations that may be sensitive to heat.

The machine also uses cooled and lubricated mechanical sealing arrangements to help maintain sealing performance during continuous operation. This is important when working with high-viscosity materials or solvent-based formulations.

Separation and Wear Resistance Matter Too

Grinding performance is only one part of bead mill operation. The grinding media must also be separated from the finished slurry efficiently before discharge.

The DF-High efficiency disk horizontal bead mill uses a dynamic separation system with a large effective separation area. It is designed to work with small grinding media, including beads down to around 0.1 mm, while helping reduce the risk of discharge blockage when processing viscous materials.

Material selection inside the grinding chamber is another important consideration. Depending on the application, wear-prone areas can use high-purity zirconia, silicon carbide, or wear-resistant alloy materials. This helps extend service life and can reduce unwanted metal contamination in applications where product purity is important.

The system can also work with different types of grinding media, including glass beads, zirconium silicate beads, and yttria-stabilized zirconia beads. This gives manufacturers more flexibility when matching the equipment to different materials and fineness requirements.

Suitable for Different Production Stages

Manufacturers often need to move from laboratory testing to larger-scale production without changing the basic grinding concept. A suitable submicron horizontal bead milling system can make this transition easier by providing a consistent processing principle across different production capacities.

The Rucca DF series is available in different chamber capacities, allowing users to select equipment according to their production requirements. This makes the series suitable for both pilot-scale development and larger industrial production.

The equipment is also designed with maintenance in mind. Its cantilevered shaft structure and split-chamber design can make cleaning, grinding media replacement, and routine servicing more convenient.

Energy Efficiency and Production Costs

Energy consumption is another factor that manufacturers need to consider when choosing milling equipment. Grinding can become a significant part of production costs when machines operate continuously.

The optimized internal flow and disk structure of the DF series are designed to make better use of the supplied mechanical energy. According to the product information, optimized fluid dynamics can reduce specific energy consumption by up to 30% compared with traditional milling equipment.

At the same time, improved cooling, wear-resistant components, and easier maintenance can help support stable long-term operation.

For production plants, these factors are important because the value of a milling machine is not determined only by its initial purchase price. Energy use, maintenance requirements, downtime, media consumption, and product consistency all contribute to the overall operating result.

Conclusion

Fine grinding becomes increasingly demanding as manufacturers move toward submicron and nanometer-scale materials. Equipment needs to provide effective energy transfer while maintaining temperature, controlling particle size distribution, separating small grinding media, and limiting wear.

The Rucca DF-High efficiency disk horizontal bead mill combines these functions in one horizontal wet grinding system. With its specialized disk structure, cooling design, dynamic separator, and wear-resistant components, it provides a practical solution for manufacturers working with advanced ceramics, electronic materials, coatings, pigments, and other fine-grinding applications.

For plants looking to improve grinding consistency while maintaining efficient and continuous production, choosing the right horizontal bead mill can make a significant difference.
