As power use grows, transmission networks also need to carry more electricity safely and efficiently. In many cases, building completely new transmission lines can require large investments, more land, and long approval processes.

This is where HTLS Conductors can provide an important solution. These conductors are designed to carry more electrical current than conventional conductors while working within existing transmission line structures in many situations. They can help power utilities increase the transfer capacity of a line without always having to build a completely new corridor.

What Are HTLS Conductors?

HTLS stands for High Temperature Low Sag. HTLS conductors are advanced overhead transmission conductors that can operate at higher temperatures than many conventional conductors while keeping conductor sag under better control.

A conductor is the part of an overhead power line that carries electrical current. Traditional conductors have limitations related to temperature and sag. When current increases, the conductor becomes hotter. As its temperature rises, it expands and can sag more between transmission towers.

Too much sag can reduce the safe clearance between the conductor and the ground, buildings, trees, roads, or other structures. This means a transmission line cannot simply carry more current indefinitely by increasing the electrical load.

HTLS technology addresses this problem by using special conductor designs and materials that allow higher operating temperatures with lower thermal expansion and controlled sag.

Why Power Transfer Capacity Matters

Power transfer capacity refers to the amount of electrical power that a transmission line can safely transfer from one location to another.

Electricity is often generated far away from where it is finally consumed. Large power stations, renewable energy projects, hydroelectric plants, and other generation facilities may be located hundreds of kilometres from major load centres.

The transmission network must therefore move large amounts of electricity over long distances.

When demand increases, an existing transmission line may become heavily loaded. A utility may then need to improve the line's capacity. Traditionally, one option is to construct a new transmission line. However, this can be difficult when land availability is limited or when the existing transmission corridor is already established.

Upgrading the conductor can sometimes provide a faster and more practical approach.

How Conventional Conductors Face Capacity Limits

Conventional overhead conductors are commonly made from materials such as aluminium and aluminium alloys, often combined with steel for mechanical strength.

Their current-carrying capacity is influenced by several factors, including:

Conductor material
Conductor size
Ambient temperature
Wind conditions
Solar radiation
Electrical resistance
Allowable conductor temperature
Required ground clearance
Tower and line design

When a conductor carries more current, electrical losses produce heat. The conductor temperature increases. As the temperature rises, the conductor expands and its sag increases.

At some point, the line may reach its thermal limit.

This creates a challenge for utilities that need higher capacity from an existing transmission corridor.

How HTLS Conductors Increase Transfer Capacity

The main advantage of HTLS conductors is their ability to operate at higher temperatures while maintaining relatively low sag.

A conventional conductor may experience significant sag when its operating temperature rises. HTLS conductors are designed to reduce this problem through specialised materials and construction.

Because they can work at higher temperatures, they can generally carry higher current under suitable operating conditions.

For example, if an existing line is limited by the thermal capacity of its conductor, replacing the old conductor with a suitable HTLS design may increase the amount of electricity that can be transferred through the same route.

The exact increase depends on the conductor type, line design, environmental conditions, and operating requirements.

The Role of Low Sag

The low-sag characteristic is one of the most important features of HTLS technology.

All overhead conductors experience some amount of sag. Sag changes with temperature, conductor weight, span length, tension, and weather conditions.

When a conductor becomes hotter, it generally expands. This increases sag.

HTLS conductors use designs that help control this thermal expansion. As a result, they can operate at higher temperatures without creating the same level of additional sag that may occur with some conventional conductors.

Maintaining adequate clearance is essential for safe transmission line operation.

Higher Operating Temperature

Another important feature is the ability to operate at higher temperatures.

Traditional conductors have defined thermal operating limits. HTLS conductors can be designed for significantly higher continuous operating temperatures, depending on the conductor technology.

This higher temperature capability allows the conductor to carry more current.

However, higher operating temperature does not mean that a transmission line can automatically be loaded to any level. The complete system must be checked. Towers, insulators, fittings, joints, foundations, clearances, and other components must also meet the required operating conditions.

Main Types of HTLS Conductors

Different HTLS technologies are available for transmission applications. Their construction and material composition can vary.

Some common categories include:

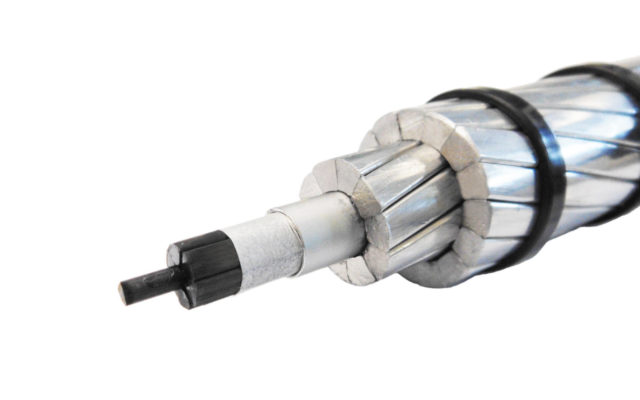

1. Aluminium Conductor with Composite Core

These conductors use a high-strength composite core instead of a traditional steel core. Composite materials can offer high strength and lower thermal expansion.

This allows the conductor to operate at higher temperatures while controlling sag.

2. Aluminium-Zirconium Conductors

Aluminium-zirconium alloys can provide better thermal performance than conventional aluminium conductors. Zirconium helps improve the conductor's ability to withstand higher operating temperatures.

These conductors can be considered for applications where increased current capacity is needed.

3. Gap-Type Conductors

Gap-type HTLS conductors use a special arrangement between the aluminium strands and the core. This construction allows high mechanical tension and improved thermal performance.

They can be useful for upgrading existing transmission lines where increased capacity is required.

4. Thermal-Resistant Aluminium Alloy Conductors

These conductors use specially developed aluminium alloys that can withstand higher operating temperatures while maintaining suitable mechanical properties.

The appropriate type depends on the specific transmission project and its technical requirements.

Benefits of HTLS Conductor Technology

HTLS conductors can offer several benefits to modern power transmission systems.

Increased Current-Carrying Capacity

The biggest advantage is higher current-carrying capacity. Since these conductors can operate at higher temperatures, they can transfer more electrical current through the same transmission route.

This can help reduce congestion in heavily loaded transmission networks.

Better Use of Existing Transmission Corridors

Land for new transmission lines can be difficult to acquire. Existing corridors already have towers, rights of way, and established infrastructure.

In suitable projects, replacing existing conductors with HTLS conductors can increase capacity while making better use of the existing corridor.

Reduced Need for New Transmission Lines

A conductor upgrade may provide additional capacity without requiring a completely new transmission route.

This does not eliminate the need for new transmission lines in all situations, but it can provide an alternative where existing infrastructure can be upgraded safely.

Support for Renewable Energy Integration

Solar and wind power generation can vary according to weather and time of day. Large renewable energy projects may also be located far from major demand centres.

A stronger transmission network is needed to move this electricity efficiently.

Higher-capacity conductors can help transmission networks handle increased power flows from renewable energy projects.

Improved Network Flexibility

Higher transfer capacity can provide utilities with more flexibility in managing power flows.

During periods of high demand, upgraded lines may be able to carry additional current within their approved operating limits.

This can help improve the overall use of transmission infrastructure.

HTLS Conductors and Existing Transmission Lines

One of the most useful applications of HTLS technology is the upgrading of existing lines.

Suppose a transmission corridor already has towers installed, but the existing conductors are limiting the amount of power that can be transferred.

In such a situation, a utility may evaluate whether reconductoring is possible.

Reconductoring means removing the existing conductor and installing a new conductor on the existing transmission structures.

HTLS conductors can be considered for this type of upgrade because their higher thermal capability can provide additional capacity without necessarily requiring an entirely new line corridor.

However, detailed engineering studies are essential before making a decision.

Important Factors Before Installing HTLS Conductors

HTLS technology provides many advantages, but conductor replacement should not be treated as a simple change of wire.

A complete technical assessment is required.

Tower Strength

The new conductor must be compatible with the existing towers. Changes in conductor weight, tension, wind loading, and other mechanical factors can affect tower performance.

Existing Clearances

Engineers must check ground clearance and clearances from roads, buildings, trees, railway lines, and other objects.

The higher operating temperature of the new conductor must also be considered.

Insulators and Hardware

Insulators, clamps, spacers, vibration dampers, joints, and other line hardware must be suitable for the new conductor.

Sometimes additional modifications may be necessary.

Span Length

Longer spans can have different sag and tension characteristics. Engineers must examine each relevant span to make sure the upgraded conductor meets safety requirements.

Environmental Conditions

Local temperature, wind, solar radiation, altitude, and other environmental factors influence conductor performance.

A conductor that works well under one set of conditions may require different selection or design under another.

Installation Process

The installation of an HTLS conductor generally follows a planned sequence.

First, engineers inspect the existing transmission line. They collect information about tower geometry, conductor condition, span lengths, clearances, and mechanical loading.

Next, the suitable conductor is selected based on the required current capacity and mechanical requirements.

The existing conductor is then removed using suitable line-maintenance procedures. The new conductor is installed using specialised stringing equipment.

After installation, the conductor is tensioned according to the approved design values.

Engineers then check sag, clearances, fittings, joints, and other important parameters.

The line can be energised after all required inspections and tests are completed.

Safety Considerations

Safety is extremely important during both design and installation.

Transmission lines operate at high voltages, so conductor replacement requires proper planning, trained personnel, approved procedures, and appropriate safety equipment.

Important safety areas include:

Electrical isolation and permits
Safe working distances
Proper grounding procedures
Stringing equipment inspection
Communication between work teams
Traffic and public safety near transmission corridors
Proper handling of conductors and fittings
Final inspection before energisation

Work should always follow applicable technical standards, utility procedures, and safety regulations.

HTLS Conductors and Energy Losses

Transmission losses are another important consideration in power networks.

Electrical losses are influenced by conductor resistance and current. When a line carries more current, losses generally increase because resistive loss is related to the square of current.

HTLS conductors are mainly selected to increase current-carrying capacity and manage thermal limitations. Their overall efficiency depends on their electrical resistance, conductor size, operating temperature, and the particular design.

Therefore, conductor selection should consider both capacity and electrical performance rather than focusing only on the maximum temperature rating.

Why Proper Engineering Is Important

The performance of an HTLS conductor depends on more than the conductor itself.

A transmission line works as a complete system. The conductor interacts with towers, insulators, fittings, foundations, protection systems, and other equipment.

A successful upgrade therefore requires:

Existing line assessment
Electrical load analysis
Thermal performance study
Mechanical loading analysis
Sag and tension calculations
Clearance assessment
Tower strength verification
Hardware compatibility checks
Installation planning
Testing and commissioning

These steps help ensure that the upgraded line operates safely and reliably.

HTLS Conductors for Growing Power Demand

Electricity demand is expected to continue growing as industries expand and more electrical equipment is used.

At the same time, power systems are becoming more complex. Renewable energy, distributed generation, electric mobility, and modern industrial loads are changing how electricity moves through the grid.

Transmission networks must therefore become more capable and flexible.

HTLS conductors can be one part of this development. By increasing the capacity of suitable existing lines, they can help utilities improve the use of established transmission infrastructure.

HTLS Conductors vs. Building a New Line

Both conductor upgrading and new transmission construction have their own applications.

Building a new line may be necessary when the existing corridor cannot support the required power flow or when a new route is required.

However, if an existing line has suitable towers and corridor conditions, reconductoring can sometimes be a practical option.

The decision depends on technical, economic, environmental, and regulatory factors.

A proper feasibility study can help determine which approach is more suitable.

Applications of HTLS Conductors

HTLS technology can be useful in several situations, such as:

Upgrading overloaded transmission lines
Increasing capacity of existing corridors
Connecting renewable energy projects
Improving power transfer between regions
Supporting growing industrial demand
Reducing transmission bottlenecks
Strengthening important grid connections
Increasing the useful capacity of existing infrastructure

The exact application depends on the requirements of the power network.

Long-Term Value of Conductor Upgrades

A transmission line represents a major infrastructure investment. The towers, foundations, land corridor, substations, and associated equipment can remain in service for many years.

When power demand increases, making better use of this existing infrastructure can be valuable.

HTLS conductor technology gives utilities another option for increasing capacity.

However, long-term performance depends on correct conductor selection, proper installation, routine inspection, and suitable maintenance.

It is also important to monitor conductor temperature, mechanical condition, fittings, and other components during the operating life of the line.

Conclusion

HTLS conductors are an important technology for improving the capacity of overhead power transmission lines. Their ability to operate at higher temperatures while controlling sag allows suitable transmission corridors to carry more electrical current.

They can be especially useful when power demand is increasing but building a completely new transmission corridor is difficult. By upgrading existing lines, utilities may improve power transfer capacity, support renewable energy integration, reduce transmission bottlenecks, and make better use of existing infrastructure.

However, every HTLS project requires careful engineering. Tower strength, conductor tension, sag, clearance, insulators, fittings, environmental conditions, and electrical performance must all be considered before installation.
