As solar module manufacturing continues to advance, production equipment must keep pace with changing module sizes, material requirements, and quality standards. An Automatic PV Film/Sheet Cutter is an important part of this process, helping manufacturers prepare encapsulation films and backsheets with consistent dimensions before lamination.

These machines are commonly used to process materials such as Ethylene Vinyl Acetate (EVA), Polyolefin Elastomer (POE), EPE co-extruded films, and composite backsheets. By automating material feeding, measurement, and cutting, they help reduce manual handling and maintain a more consistent production workflow.

With the growing adoption of M10 and M12 wafer formats, double-glass modules, and N-type solar technologies, manufacturers may also need to evaluate whether their existing cutting equipment can meet new production requirements. In some cases, refurbishing an existing PV film cutter offers a practical alternative to purchasing an entirely new machine.

Why Automatic PV Film/Sheet Cutters Matter

The quality of encapsulation materials and the consistency of the cutting process can affect downstream module assembly. An automatic cutter helps manufacturers manage several important production challenges.

1. Consistent Cutting Dimensions

PV encapsulation films must be prepared to match the dimensions and design of the solar module. Inaccurate cutting can result in material overhang, insufficient edge coverage, or additional adjustments during assembly.

An automatic PV sheet cutting system uses controlled feeding and measurement to produce sheets according to predefined settings. Consistent cutting dimensions can help reduce material waste and support a smoother lamination process.

2. Controlled Material Feeding and Tension

Materials such as EVA and POE can stretch or deform if they are handled under unsuitable tension. Variations during unwinding and feeding may affect the final sheet dimensions and create difficulties during subsequent processing.

A properly maintained tension-control system helps keep the material moving smoothly through the cutter. Depending on the machine configuration, features such as dancer arms and edge-guiding sensors can also help maintain stable feeding and alignment.

3. Static Reduction and Contamination Prevention

Dust and other particles on encapsulation films may affect the cleanliness of the module assembly process. Static electricity can attract airborne contaminants, making material handling more challenging.

Static elimination devices and localized dust collection, where installed, can help reduce these risks. Regular equipment maintenance and appropriate factory cleanliness procedures remain important for protecting encapsulation materials before lamination.

Is Refurbishing an Automatic PV Film Cutter Worth Considering?

Purchasing new production equipment is not always the most practical choice, particularly when manufacturers need to control capital spending or upgrade an existing production line. A professionally refurbished Automatic PV Film/Sheet Cutter may provide a way to extend equipment service life while addressing specific operational limitations.

However, refurbishment should involve more than replacing worn parts. The machine's mechanical condition, electrical controls, cutting performance, and compatibility with the target production line all need to be evaluated.

Mechanical Inspection and Frame Restoration

A refurbishment project may begin with a detailed inspection and mechanical teardown. Depending on the equipment's condition, the work can include rust removal, frame restoration, alignment checks, and repairs to worn mechanical components.

The objective is to establish a stable mechanical foundation before upgrading the machine's control and cutting systems.

PLC, HMI, and Servo System Upgrades

Older cutting machines may rely on control components that are difficult to maintain or integrate with modern production processes. Replacing outdated components with updated programmable logic controllers (PLCs), touchscreen human-machine interfaces (HMIs), and servo drives can improve operational control and simplify parameter adjustments.

Where required, integration with a Manufacturing Execution System (MES) should be assessed according to the factory's communication protocols and production management requirements. Compatibility should be confirmed before any retrofit work begins.

Cutting Blade and Tension System Improvements

The cutting mechanism must suit the materials and thicknesses used in production. Refurbishment may include replacing worn blades, inspecting the feeding system, improving tension control, and checking the accuracy of edge-guiding components.

For manufacturers processing EVA, POE, EPE films, or composite backsheets, the appropriate configuration depends on material characteristics, cutting width, required tolerances, and production speed. These factors should be evaluated together rather than treating a single blade or control upgrade as a universal solution.

Key Benefits of Refurbished PV Cutting Equipment

For solar manufacturers planning an equipment upgrade, refurbishment can offer several potential advantages.

Lower initial investment: Reusing suitable machine structures and components may reduce upfront capital expenditure compared with purchasing new equipment. Actual savings depend on the original machine's condition, the scope of refurbishment, and the cost of required upgrades.

Shorter equipment procurement cycles: When a suitable machine is available for refurbishment, the project may avoid some of the manufacturing lead time associated with a new unit. Inspection, component sourcing, rebuilding, and testing schedules should still be confirmed in advance.

Improved compatibility with current production needs: Selected mechanical, electrical, and control-system upgrades can help older equipment accommodate updated material specifications or production workflows. Support for M10, M12, or 210 mm wafer-related module formats must be verified against the machine's actual working width and configuration.

Extended service life: Replacing worn components and addressing known performance issues can help manufacturers continue using existing equipment. The final result depends on the machine's baseline condition, the quality of the refurbishment, and ongoing maintenance.

Bluemann: Refurbishment and Customization for Solar Production Lines

Bluemann, also known as Wuxi Bluemann, provides solar manufacturing equipment and related engineering services. For manufacturers considering an automatic PV film cutter upgrade, the suitability of a refurbishment partner depends on its ability to assess the existing machine, identify production requirements, and deliver a configuration that fits the intended application.

Several factors are worth discussing when evaluating a refurbishment project with Bluemann.

Engineering assessment and quality checks: Mechanical alignment, electrical functions, feeding stability, and cutting performance should be inspected as part of the refurbishment process. Testing procedures and acceptance criteria should be agreed upon before delivery.
Application-specific customization: Cutting width, blade configuration, feeding speed, tension control, and material compatibility should be matched to the factory's production requirements. Manufacturers handling thin POE films or thicker backsheets may need different machine settings or components.
Investment planning: Comparing the full refurbishment cost with the price of new equipment helps manufacturers assess the potential return on investment. The comparison should include installation, integration, spare parts, downtime, and future maintenance.
Technical support throughout the project: Site evaluation, installation, commissioning, operator training, and spare parts availability can all influence long-term equipment performance. Clarifying the scope of support helps avoid gaps between delivery and production startup.

Before choosing a refurbished machine, manufacturers should also request details about the replacement components, testing results, warranty coverage, expected service life, and compatibility with their existing production line.

Conclusion

An Automatic PV Film/Sheet Cutter plays an important role in preparing EVA, POE, EPE co-extruded films, and backsheets for solar module lamination. Consistent cutting, controlled material feeding, and effective contamination management can help manufacturers maintain a stable assembly process.

For factories working with limited capital budgets or existing equipment that no longer meets current production needs, refurbishment may be a viable alternative to purchasing a new machine. The decision should be based on the equipment's condition, required upgrades, material compatibility, and verified performance after testing.

With a clearly defined refurbishment scope and appropriate technical support, manufacturers can evaluate opportunities to extend equipment life, manage investment costs, and adapt their production lines to evolving solar module requirements. Bluemann can be considered as a potential partner for solar equipment refurbishment and customization, subject to confirmation of the specific machine configuration and service scope.

https://www.bluemannsolar.com/sustainable-solar-manufacturing-a-technical-guide-to-refurbished-pv-film-cutters.html

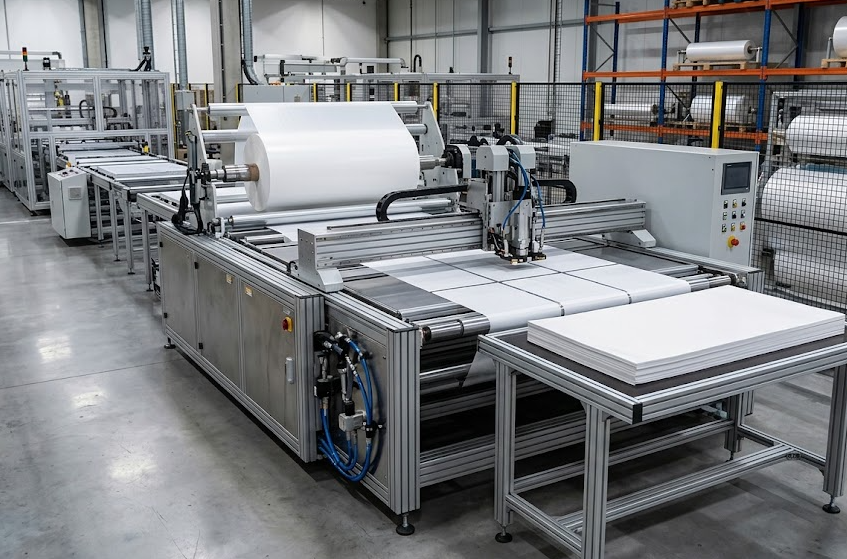

Refurbished Automatic PV Film/Sheet Cutters: A Practical Upgrade for Solar Module Production
