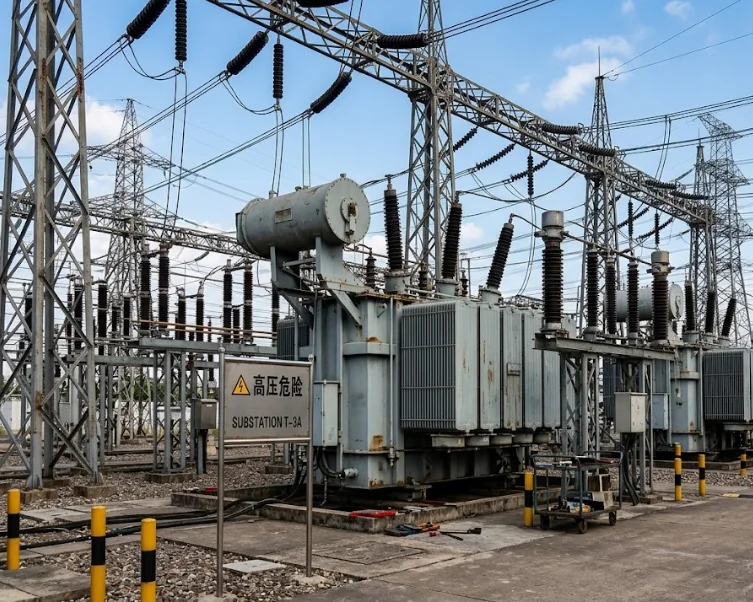

Electrical substations handle very large currents as electricity moves between generation, transmission, and distribution systems. These currents can reach hundreds or even thousands of amperes, making direct connection to meters, monitoring equipment, and protective relays impractical.

A current transformer in substation applications provides a safe and reliable way to solve this problem. It converts high primary current into a much smaller secondary current, commonly 1A or 5A, allowing electrical equipment to measure and analyze the system safely.

For modern substations, current transformers are not simply measuring components. They provide important electrical information for metering, protection, monitoring, and automated control.

Why Substations Need Current Transformers

High-voltage equipment needs continuous information about the current flowing through the system. However, measuring primary current directly would require equipment capable of handling extremely high electrical levels.

A current transformer for substation use reduces the primary current to a standardized secondary value. The resulting signal can then be connected to meters, protection relays, monitoring systems, and other control equipment.

This allows utilities and operators to:

Monitor current and power flow
Identify abnormal electrical conditions
Protect transformers, switchgear, and other equipment
Support energy management
Improve system operation and stability
Provide data for automated substation systems

The accuracy and reliability of the CT therefore have a direct influence on the performance of the wider electrical protection and control system.

Main Applications of Current Transformers

Accurate Electrical Metering

One important application is electrical measurement. A high-accuracy current transformer provides the current signal required by metering equipment.

Utilities can use this information for revenue metering, load analysis, energy auditing, and operational planning. When electrical systems operate at a large scale, even a relatively small measurement error can affect energy calculations and system management.

For this reason, a substation metering current transformer needs to maintain stable accuracy under normal operating conditions.

Protection and Fault Detection

Current transformers also play a major role in substation protection.

Protection relays receive current signals from CTs and use them to identify conditions such as:

Overcurrent
Short circuits
Ground faults
Differential faults

When a fault occurs, the relay can respond by sending a trip signal to the relevant circuit breaker. Fast and accurate current information helps limit equipment damage and reduce the impact of electrical faults.

A protection current transformer therefore needs to maintain suitable performance even when current rises significantly during abnormal conditions.

Monitoring Equipment Condition

Current data can also support equipment monitoring and maintenance.

Modern substations collect operating information continuously, allowing utilities to evaluate transformer loading, circuit breaker operation, load distribution, and other system conditions.

This information can contribute to predictive maintenance programs by helping operators identify unusual operating patterns before they develop into more serious problems.

Common Types of CTs for Substation Applications

Different substation environments require different current transformer designs.

Outdoor high-voltage current transformers are commonly installed in transmission substations and outdoor switchyards. They need strong insulation, weather resistance, and reliable long-term performance.

Indoor current transformers are generally used inside medium-voltage switchgear and distribution equipment. Their compact construction makes them suitable for enclosed electrical installations.

Protection current transformers are designed around the requirements of relay protection systems. Their performance during high-current fault conditions is particularly important.

Metering current transformers focus on measurement accuracy and are commonly used for energy measurement, billing, and utility management.

The correct choice depends on the electrical system, installation environment, and intended function.

What Determines Current Transformer Performance?

Several technical factors should be considered when selecting a CT.

Accuracy Class

Accuracy is particularly important for metering applications. A suitable accuracy class helps ensure that the secondary current accurately represents the primary current under specified operating conditions.

Thermal and Dynamic Performance

Fault conditions can produce currents much higher than normal operating levels. A reliable CT must be able to withstand the associated thermal and mechanical stresses without permanent damage or unacceptable performance changes.

Insulation Reliability

High-voltage substations place demanding requirements on insulation systems. Good insulation helps protect the equipment against partial discharge, dielectric failure, moisture penetration, and long-term environmental aging.

Magnetic Core

The core material has a direct effect on the CT's accuracy and saturation behavior. Appropriate magnetic materials help maintain stable performance under different load and fault conditions.

Current Transformers in Smart Substations

Substation technology is becoming increasingly digital. Smart grids require more real-time information to support automated operation, fault detection, system analysis, and remote monitoring.

In this environment, current transformers provide an important source of electrical data.

They can support:

Real-time current measurement
Automated protection
Digital substations
Grid monitoring
Renewable energy management
Advanced electrical analysis

As substations become more intelligent, the role of the CT is moving beyond basic measurement toward reliable data acquisition for the entire power management system.

The Growing Need for CTs in Renewable Energy Projects

Renewable energy projects are also changing the requirements for electrical measurement.

Solar farms, wind farms, and battery energy storage systems can experience changing power flows and operating conditions. Accurate current measurement helps operators understand these changes and maintain stable connections with the wider grid.

A reliable current transformer for renewable energy substations can help with power-flow monitoring, equipment protection, power-quality management, and grid stability.

As renewable generation continues to expand, reliable current measurement will remain an important part of electrical infrastructure.

How to Choose the Right Current Transformer

Choosing a CT should begin with the actual application rather than only the primary current rating.

First, determine whether the transformer is required for metering, protection, monitoring, or a combination of functions.

Next, consider the installation environment. Outdoor equipment may be exposed to UV radiation, humidity, temperature changes, pollution, and salt spray, so environmental resistance is essential.

Applicable standards should also be checked. Depending on the project and market, current transformers may need to meet relevant IEC, IEEE, or other electrical standards.

Finally, long-term reliability should be considered. Substation equipment is normally expected to operate for many years, so manufacturing quality, insulation performance, material selection, and quality control are all important.

Tianrui Current Transformer Solutions

Tianrui focuses on current transformer manufacturing for a range of electrical applications, including high-voltage substations, smart grids, renewable energy systems, utility metering, and industrial power distribution.

Its current transformer solutions are designed around the requirements of accurate measurement, reliable protection, and long-term operation. Manufacturing processes, quality control, and material selection all contribute to the performance required by modern electrical networks.

Conclusion

Current transformers are an essential part of modern substations because they provide the electrical signals needed for measurement, protection, and monitoring. By converting high primary currents into standardized secondary currents, they allow meters and protection systems to work safely and accurately.

As power grids become more digital and renewable energy becomes more widely connected, the demand for dependable current measurement will continue to grow. Selecting the appropriate current transformer in substation applications can therefore help utilities improve measurement accuracy, equipment protection, and the overall reliability of their power infrastructure.
