This is the Brain Scan Bible.

Part I: The Imaging Arsenal — Understanding Each Modality

Computed Tomography (CT): The Workhorse of Emergency Imaging

Computed tomography uses X-rays to create cross-sectional images of the brain. It is the most commonly ordered brain imaging study in emergency settings—rapid, widely available, and excellent for detecting acute hemorrhage, fractures, and large strokes.

How It Works: An X-ray tube rotates around the patient's head, firing beams through the skull. Detectors on the opposite side measure how much radiation passes through. Dense tissues (bone) absorb more radiation and appear white; less dense tissues (air, fluid) appear darker.

The Hounsfield Scale: CT images are displayed using the Hounsfield Unit (HU) scale, ranging from -1000 (air) to +1000 (bone), with water at 0. The higher the HU, the brighter (denser) the tissue.

Tissue Hounsfield Unit Appearance

Air -1000 Black

Fat -100 to -50 Dark grey

Water/CSF 0 Grey

White matter 25-35 Light grey

Grey matter 35-45 Slightly lighter grey

Acute blood 50-80 Bright white

Bone 300 Very bright white

When to Use CT:

· Acute stroke: To exclude hemorrhage before thrombolysis

· Head trauma: To detect fractures, intracranial bleeding

· Severe headache: To rule out subarachnoid haemorrhage

· Altered mental status: To identify mass lesions or hydrocephalus

Limitations: CT cannot visualise the brain stem, posterior fossa, or subtle white matter changes clearly. It exposes patients to ionizing radiation. Soft tissue resolution is inferior to MRI.

Magnetic Resonance Imaging (MRI): The Gold Standard

MRI uses strong magnetic fields and radiofrequency pulses to generate images. It produces exquisitely detailed images of soft tissues—the brain's grey and white matter, cranial nerves, and blood vessels—without ionizing radiation.

How It Works: Hydrogen protons in the body align with the magnetic field. Radiofrequency pulses disrupt this alignment. As protons realign, they emit signals that are detected and reconstructed into images. Different sequences weight the images to highlight specific tissue characteristics.

The Essential MRI Sequences:

Sequence What It Shows Key Features

T1-weighted Anatomy; fat bright, CSF dark Best for structural detail

T2-weighted Fluid and pathology bright Detects edema, inflammation, lesions

FLAIR T2 with CSF suppressed Periventricular lesions, MS plaques

DWI Restricted diffusion Acute stroke, abscess, cellular tumours

ADC DWI correlate Differentiates true restriction from T2 shine-through

T2*/SWI Susceptibility Microhemorrhages, iron deposition

T1 vs T2 Simplified:

· T1: CSF is dark; white matter is lighter than grey matter

· T2: CSF is bright; white matter is darker than grey matter

· FLAIR: Similar to T2 but CSF is dark (suppressed), making periventricular pathology visible

When to Use MRI:

· Multiple sclerosis: FLAIR shows periventricular plaques

· Stroke characterisation: DWI detects acute ischemia

· Tumour assessment: Superior anatomical detail

· Neurodegeneration: Volumetric assessment

· Seizure disorders: To identify structural causes

Limitations: MRI is time-consuming (20-40 minutes), expensive, and contraindicated in patients with certain metallic implants or severe claustrophobia.

Advanced Modalities

CT Angiography (CTA) and MR Angiography (MRA): Visualise cerebral blood vessels to detect aneurysms, stenoses, and vascular malformations.

CT Perfusion (CTP) and MR Perfusion: Assess regional blood flow, blood volume, and mean transit time—critical in acute stroke to identify salvageable tissue.

Functional MRI (fMRI): Maps brain activity by detecting changes in blood oxygenation during tasks.

Diffusion Tensor Imaging (DTI): Tracks white matter tracts, revealing structural connectivity.

MR Spectroscopy: Measures metabolite concentrations, aiding in tumour characterisation and metabolic disorders.

Positron Emission Tomography (PET): Assesses metabolic activity, glucose uptake, and amyloid/tau deposition in dementia.

Magnetoencephalography (MEG): Measures magnetic fields from neuronal activity with millisecond precision.

How to Read a CT Brain — A Systematic Approach

Step 1: Orient Yourself

When viewing a CT or MRI, the right side of the image is the patient's left side. This is because the image is viewed as if looking at the patient from the feet.

Step 2: Check the Windows

Brain Window (width ~80 HU, level ~40 HU): For parenchyma

Bone Window (width ~2000 HU, level ~500 HU): For skull and facial bones

Subdural Window (width ~250 HU, level ~50 HU): For extra-axial collections

Step 3: Identify Key Anatomical Levels

The Emergency CT Brain interpretation method identifies seven key levels:

Level 1 — Upper Cortex: Two halves of the brain, gyri and sulci visible

Level 2 — Lateral Ventricles: Look for the "boomerangs" —the lateral ventricles

Level 3 — Basal Ganglia: Look for the "pizza slice" —the basal ganglia (caudate and lentiform nuclei)

Level 4 — Quadrigeminal Cistern: Look for the "smiley face"

Level 5 — Midbrain: Look for the "heart" shape

Level 6 — Pons: Look for the "5-pointed star"

Level 7 — Base of Skull: Use both brain and bone windows to look for fractures

Step 4: Look for Blood — The Golden Rule

The single most important rule in head CT interpretation: Blood is bright on CT.

Acute hemorrhage: Hyperdense (bright white) on non-contrast CT

Location matters:

· Extra-axial: Outside the brain parenchyma (epidural, subdural, subarachnoid)

· Intra-axial: Within the brain parenchyma (intracerebral, intraventricular)

Step 5: Assess for Mass Effect

· Midline shift: Deviations >5mm are clinically significant

· Sulcal effacement: Loss of normal grooves

· Ventricular compression: Loss of CSF spaces

· Herniation: Uncal, tonsillar, or central

Step 6: Evaluate for Ischemia

· Hyperacute (<6 hours): Subtle grey-white matter blurring, loss of insular ribbon

· Acute (6-24 hours): Hypodensity, mass effect

· Subacute (24 hours-1 week): Well-defined hypodensity, oedema

· Chronic: Encephalomalacia (fluid-filled cavity)

Step 7: Check the Ventricles

· Hydrocephalus: Dilated ventricles

· Intraventricular haemorrhage: Blood in ventricles

· Normal pressure hydrocephalus: Ventriculomegaly out of proportion to sulcal atrophy

How to Read a Brain MRI — A Systematic Approach

Step 1: Review All Sequences

A standard brain MRI should include: T1, T2, FLAIR, DWI/ADC, and T2* (SWI).

Step 2: T1-Weighted — The Anatomical Map

CSF is dark, grey matter is darker than white matter.

· Hypointense lesions: Edema, demyelination, infarcts

· Hyperintense lesions: Fat, subacute haemorrhage, melanin, gadolinium enhancement

Step 3: T2-Weighted and FLAIR — The Pathology Scanner

T2: Fluid is bright; white matter is darker than grey

FLAIR: Similar to T2 but CSF is dark (suppressed)

FLAIR is the most sensitive sequence for detecting pathology——periventricular lesions, cortical lesions, and subarachnoid disease. It is the primary sequence for identifying multiple sclerosis plaques.

Step 4: DWI/ADC — The Stroke Detector

DWI shows areas of restricted diffusion as bright.

ADC confirms true restriction (dark) versus T2 shine-through (bright).

Finding DWI ADC Implication

True restriction Bright Dark Acute stroke, abscess, cellular tumour

T2 shine-through Bright Bright Edema, chronic infarct

Step 5: SWI/T2* — The Hemorrhage Hunter

Detects microhemorrhages, iron deposition, and calcifications——small dark foci.

Step 6: Look for Enhancement

Gadolinium enhancement indicates breakdown of the blood-brain barrier——seen in:

· Tumours

· Infections (abscess, meningitis)

· Demyelinating disease (active MS plaques)

· Vasculitis

Disease-Specific Findings

4.1 Acute Ischemic Stroke

CT (Non-Contrast):

· Hyperacute (<6 hours): Subtle grey-white blurring, loss of insular ribbon, dense MCA sign

· Acute (6-24 hours): Well-defined hypodensity, mass effect

· Dense MCA sign: Hyperdense thrombus in the middle cerebral artery

MRI:

· DWI: Bright (restricted diffusion) within minutes

· ADC: Dark (true restriction)

· FLAIR/T2: May be normal in hyperacute; becomes bright over time

· FLAIR-DWI mismatch: Indicates acute stroke within 4.5-hour window

Key Distinction:

· Acute infarct: DWI bright, ADC dark

· Chronic infarct: DWI may be bright (T2 shine-through), ADC bright (no true restriction)

4.2 Intracranial Hemorrhage

CT (Non-Contrast):

· Acute: Hyperdense (bright)

· Subacute: Isodense (similar to brain)

· Chronic: Hypodense (dark)

MRI (Age of Blood):

· Hyperacute (<6 hours): T1 isointense, T2 bright

· Acute (6-72 hours): T1 isointense, T2 dark

· Early subacute (3-7 days): T1 bright, T2 dark

· Late subacute (7-14 days): T1 bright, T2 bright

· Chronic (>14 days): T1 dark, T2 dark

Types of Hemorrhage:

· Epidural: Biconvex, does not cross sutures

· Subdural: Crescentic, crosses sutures

· Subarachnoid: Follows sulci, CSF spaces

· Intraparenchymal: Within brain tissue

· Intraventricular: Within ventricles

4.3 Brain Tumors

CT:

· Primary: Often hypodense or isodense; may enhance

· Metastatic: Usually multiple, round, enhancing, with surrounding oedema

· Meningioma: Extra-axial, hyperdense, dense homogeneous enhancement

MRI:

· T1: Hypointense (mass effect may be visible)

· T2/FLAIR: Hyperintense (oedema, infiltration)

· DWI: Variable (restriction in lymphoma, cellular tumours)

· Enhancement: Variable; suggests BBB breakdown

· MRS: Elevated choline, decreased NAA

Key Features:

· Glioblastoma: Ring-enhancing, necrotic centre, surrounding oedema

· Meningioma: Extra-axial, dural tail, homogeneous enhancement

· Metastasis: Multiple, at grey-white junction, ring-enhancing

· Lymphoma: Periventricular, homogeneous enhancement, restricted diffusion

· Pituitary adenoma: Sellar/suprasellar, homogeneous enhancement

4.4 Multiple Sclerosis

MRI (The Gold Standard):

· FLAIR/T2: Periventricular, ovoid, Dawson's fingers

· T1: May show "black holes" in chronic lesions

· Enhancement: Active lesions enhance with gadolinium

· Spinal cord: Often involved

Key Features:

· Dissemination in space: Multiple lesions in different regions

· Dissemination in time: New lesions or enhancement

· McDonald criteria guide diagnosis

4.5 Neurodegenerative Diseases

Alzheimer's Disease:

· Medial temporal lobe atrophy (hippocampus, entorhinal cortex)

· Global cerebral atrophy

· Enlarged ventricles

Frontotemporal Dementia:

· Frontal and/or temporal lobe atrophy

· Pick's disease: Knife-blade atrophy

Vascular Dementia:

· Lacunar infarcts

· Extensive white matter hyperintensities (leukoaraiosis)

· Large vessel infarcts

Dementia with Lewy Bodies:

· May show relative preservation of medial temporal lobes

· Occipital hypoperfusion on SPECT/PET

Normal Pressure Hydrocephalus:

· Ventriculomegaly

· Evan's ratio >0.3

· Disproportionate enlargement of ventricles relative to sulci

4.6 Infections

Meningitis:

· CT: May be normal; sulcal enhancement with contrast

· MRI: Leptomeningeal enhancement (FLAIR, post-contrast T1)

Encephalitis:

· MRI: T2/FLAIR hyperintensity in affected regions

· Herpes simplex: Temporal lobe involvement

Abscess:

· CT: Ring-enhancing, central hypodensity, surrounding oedema

· MRI: Ring-enhancing (T1 post-contrast), central restricted diffusion (DWI bright, ADC dark)

Neurocysticercosis:

· CT: Calcified lesions (bright on CT), ring-enhancing lesions

· MRI: Scolex may be visible; different stages of evolution

4.7 Head Trauma

CT:

· Fractures: Bone windows

· Epidural hematoma: Biconvex, hyperdense, does not cross sutures

· Subdural hematoma: Crescentic, crosses sutures

· Subarachnoid haemorrhage: Follows sulci

· Contusions: Heterogeneous density, often frontal/temporal

MRI:

· SWI/T2*: Sensitive for microhemorrhages

· Diffuse axonal injury: Multiple small haemorrhages at grey-white junction, corpus callosum, brainstem

Modern Imaging Techniques — Beyond CT and MRI

5.1 Positron Emission Tomography (PET)

PET measures metabolic activity by detecting positron-emitting radiotracers.

FDG-PET: Glucose metabolism

· Alzheimer's: Temporoparietal hypometabolism

· FTD: Frontal hypometabolism

· Epilepsy: Focal hypometabolism in seizure focus

Amyloid PET: Detects amyloid plaques

· Positive in Alzheimer's (even preclinically)

· Negative in FTD, vascular dementia

Tau PET: Detects tau tangles

· Correlates with cognitive decline

· Emerging as a diagnostic tool

5.2 Functional MRI (fMRI)

fMRI detects changes in blood oxygenation (BOLD signal) during tasks.

· Pre-surgical mapping of motor, language, and visual cortex

· Research into functional connectivity (resting-state fMRI)

· Identifies networks (default mode, salience, executive control)

5.3 Diffusion Tensor Imaging (DTI)

DTI tracks white matter tracts by measuring water diffusion anisotropy.

· Fractional anisotropy: Reduced in white matter injury

· Tractography: 3D reconstruction of fibre pathways

· Applications: Multiple sclerosis, traumatic brain injury, tumour planning

5.4 MR Spectroscopy (MRS)

MRS measures metabolite concentrations.

· NAA (N-acetylaspartate): Neuronal marker (decreased in injury, tumour)

· Choline: Cell membrane turnover (increased in tumours, demyelination)

· Lactate: Anaerobic metabolism (increased in ischemia, abscess)

· Lipids: Necrosis

· Creatine: Reference metabolite

5.5 Magnetoencephalography (MEG)

MEG measures magnetic fields from neuronal activity.

· Millisecond temporal resolution

· Pre-surgical mapping of eloquent cortex

· Epilepsy focus localisation

The Future of Brain Imaging — Emerging Technologies

6.1 Artificial Intelligence and Foundation Models

AI is revolutionising neuroimaging. A 2026 health system-wide study found that a new AI foundation model achieved a mean diagnostic area under the curve of 92% across 52 radiologic diagnoses, with accuracy reaching up to 97.5%.

Key Developments:

· BrainIAC model: Predicts brain age (mean absolute error 6.55 years), IDH mutation in gliomas

· GliomaVista-IDH: Achieved AUC 0.97—significantly outperforming physicians in predicting IDH mutation status

· Hybrid deep learning framework: 98.4% accuracy in brain tumour detection and classification

· Generative AI and foundation models: Enable accelerated MRI acquisitions, generating high-fidelity images from under-sampled k-space data

6.2 Quantum-Enhanced Imaging

Quantum Neuroinformatics integrates fMRI, EEG, and genomic data to model complex neuropsychiatric phenotypes. Hyperpolarised MRI (HP-MRI) enables quantum-enhanced metabolic imaging for reliable detection of small brain metastases. Quantum-inspired deep learning frameworks provide explainable EEG-based diagnosis.

6.3 Ultra-High-Field MRI

7-Tesla and higher MRI systems provide unprecedented resolution:

· Visualisation of cortical layers

· Detection of small lesions

· Improved metabolic imaging

6.4 Wearable and Portable Technologies

Optically pumped magnetometers (OPMs): Wearable MEG enabling recordings during natural movement. Portable MRI systems are being developed for bedside imaging in ICUs.

6.5 Multimodal Integration

The future lies in combining modalities:

· PET/MRI: Simultaneous metabolic and anatomical imaging

· Simultaneous EEG-fMRI: Combining electrophysiology with haemodynamic response

· AI-driven analysis: Integrating multimodal data for comprehensive assessment

Practical Tips for Non-Radiologists

7.1 When to Order CT vs MRI

Indication Modality

Acute stroke (exclude hemorrhage) CT (rapid, accessible)

Stroke characterisation MRI (DWI for acute infarct)

Head trauma CT (bleeding, fractures)

Headache (chronic) MRI (better soft tissue detail)

Seizure (new onset) MRI (structural causes)

Multiple sclerosis MRI (FLAIR, DWI)

Dementia MRI (atrophy pattern)

Tumour MRI (superior detail, enhancement)

Infection MRI (leptomeningeal enhancement)

7.2 When to Use Contrast

· MRI with gadolinium: Tumours, infections, MS, inflammation

· CT with contrast: Vascular lesions, tumours, infections

· MRI without contrast: Stroke, haemorrhage, most MS, dementia

7.3 How to Interpret Reports

Key terms:

· Hyperdense: Bright on CT (blood, calcification)

· Hypodense: Dark on CT (oedema, infarct)

· Hyperintense: Bright on MRI (FLAIR/T2 lesions)

· Hypointense: Dark on MRI

· Mass effect: Displacement of normal structures

· Enhancement: BBB breakdown (tumour, infection, active MS)

· Restricted diffusion: Acute stroke, abscess, cellular tumour

· Atrophy: Volume loss

· Leukoaraiosis: White matter changes (small vessel disease)

7.4 The Single Most Important Principle

MRI and CT findings must always be correlated with clinical symptoms——a crucial reminder echoed by a 2025 review on neurodegenerative MRI. Many people have disc bulges, white matter changes, or "

incidentalomas" without any symptoms. A scan cannot replace a careful clinical assessment.

The brain scan is the window into the mind. But reading it requires skill, knowledge, and a systematic approach. This guide demystifies neuroimaging — from CT to MRI to AI — empowering you to understand what you see. Read the full article by Dr. Sannjay. #BrainScanBible #Neuroimaging #MRIReading #CTBrain #Radiology #BrainHealth #StrokeAwareness #AIinRadiology #DrSannjay #MedicalEducation

The Window into the Mind

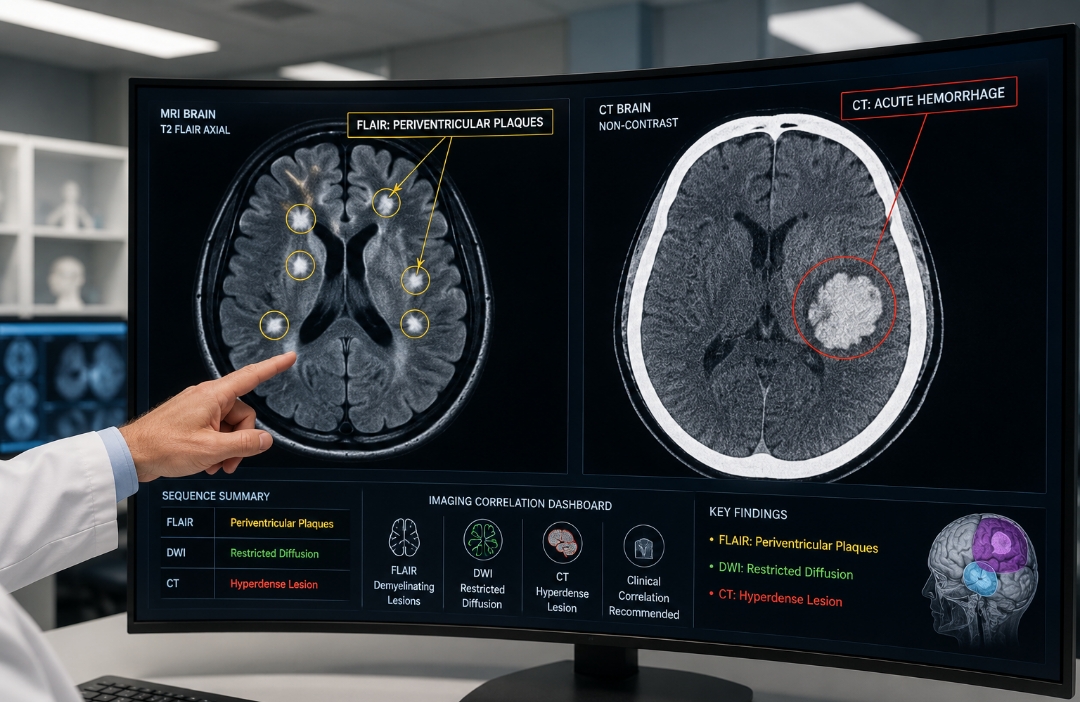

A Comprehensive Guide to Reading, Understanding, and Mastering Neuroimaging
